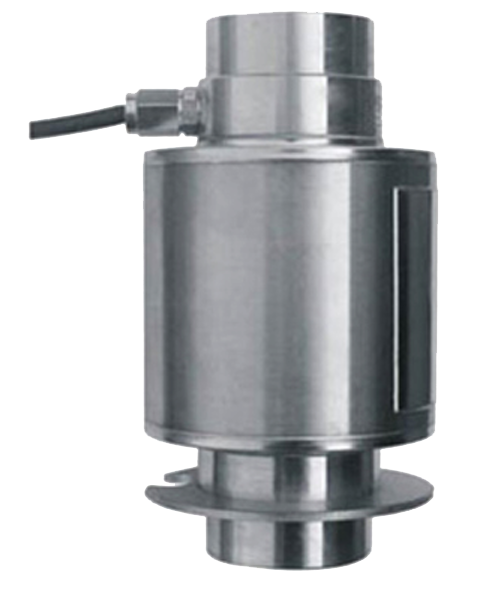

本产品采用优质合金钢，广泛应用：汽车衡、轨道衡、轴重秤、地上衡等大型称重设备。

        This production made of high-quality alloy steel, widely used: truck scale, rail scale, axle weight scale, ground scale and other large weighing equipment

额度量程 Rated Capacity-------10、20、30、40、50、60、100(Kg)

精度等级 Accuracy Class--------C3

灵敏度 Sensitivity----------2.0±0.1%mV/V

零点输出 Zero Balance-----------±0.1mV/V

输入电阻 Input Resistance-------775±5

输出电阻 Output Resistance------702±2

非线性误差 Linearity Error--------±0.05%R.0.

重复性误差 Repeatability Error---±0.05%R.0.

滞后误差 Hysteresis Error----------±0.05%R.0.

30分钟蠕变 Creep in 30 Min.-------±0.05%R.O.

输出温度影响 Temp.Effect on Output--±0.05%R.0./10°C

零点温度影响 Temp.Effect on Zero-----±2%R.0./10°C

温度补偿范围 Compensated Temp.Range---10-+40℃

推荐激励电压 Excitation,Recommended-------8-15VDC

最大激励电压 Excitation,Maximum----------------24VDC

工作温度范围 Operating Temp.Range---------30-+70°C

安全过载范围 Safe Overload---------------------150%R.C.

极限过载范围 Ultimate Overload---------------200%R.C.

绝缘电阻 Insulation Resistance------≥5000MQ(50VDC)

防护等级 Protection Class--------IP67
