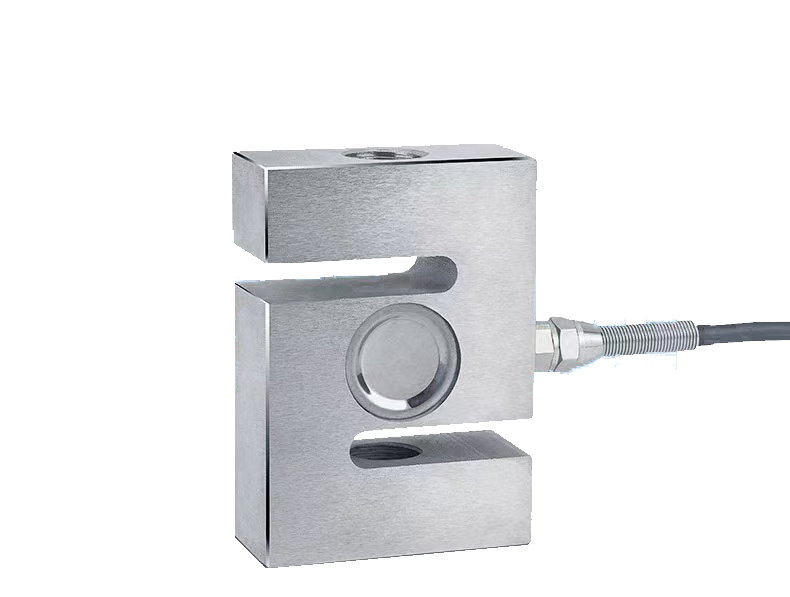

本产品结构紧凑，综合精度高，稳定性好；采用优质合金钢；适用于吊钩秤、配料称重控制，建机等领域可选配连接件。

      The structure of product is compact, high accuracy, good stability,and made of best alloy steel. This product is suitable for hock balance,burden weighing system, building machinery fields and so on.

额度量程 Rated Capacity-------50-5000(Kg)

精度等级 Accuracy Class--------C3

灵敏度 Sensitivity----------2.0±0.002%mV/V

零点输出 Zero Balance-----------±0.1mV/V

输入电阻 Input Resistance-------400±10

输出电阻 Output Resistance------350±2

非线性误差 Linearity Error--------±0.05%R.0.

重复性误差 Repeatability Error---±0.05%R.0.

滞后误差 Hysteresis Error----------±0.05%R.0.

30分钟蠕变 Creep in 30 Min.-------±0.05%R.O.

输出温度影响 Temp.Effect on Output--±0.05%R.0./10°C

零点温度影响 Temp.Effect on Zero-----±2%R.0./10°C

温度补偿范围 Compensated Temp.Range---10-+40℃

推荐激励电压 Excitation,Recommended-------5 -12VDC

最大激励电压 Excitation,Maximum----------------18VDC

工作温度范围 Operating Temp.Range---------30-+70°C

安全过载范围 Safe Overload---------------------150%R.C.

极限过载范围 Ultimate Overload---------------200%R.C.

绝缘电阻 Insulation Resistance------≥5000MQ(50VDC)

电缆线长度 Cable,Length--------05mmx1.5m *

防护等级 Protection Class--------IP67
